Explosion-proof valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal diameter: DN200 ~ 800mm
Nominal pressure: ≤ 0.1Mpa
Medium: compressed explosive gas
Temperature: ≤80 ℃
Main material: carbon steel, aluminum
Flange Standard: GB / T9115-98
Connection Size: GB2555-81PN2.5
Detection method: GB / T13927-92
First, the product works and uses

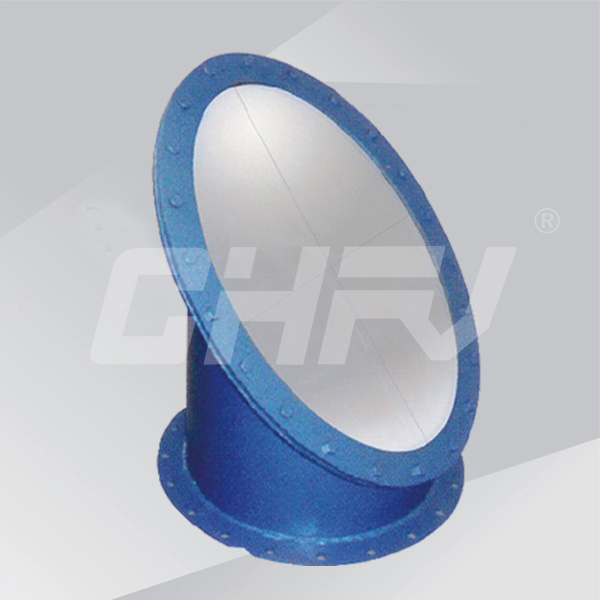

Explosion-proof valve is suitable for building materials, metallurgy, chemical industry, electricity and other departments, as a pressure relief explosive gas pipeline equipment for compressed explosive gas, the working temperature 300 ℃, the use of pressure 0.1MPa. The valve is welded steel structure, simple structure, light weight, reliable performance. The valve by the valve body, bursting disc, gland and other components. Mainly from the protection, to prevent the occurrence of safety incidents, belonging to the hydraulic system of the lock, tight measures. When the system pressure is greater than 0.1MPa pressure, the rupture disc ruptures itself to prevent the system from exploding.
Second, product performance parameters
| Suitable media | proper temperature | use pressure |
| Compress explosive gas | ≤80 ℃ | ≤0.1MPa |
Third, the main parts of the product material
| Part Name | Body | Bursting disc | cap |
| material | Carbon steel | Aluminum alloy | Carbon steel |
Explosion-proof valve main dimensions (mm)
| A × A | B × B | C × C | H | n × d | Quality / kg | DN | D | D1 | H | n × d | Quality / kg |
| 200 × 200 | 270 × 270 | 305 × 305 | 220 | 8 × φ18 | 40 | 200 | 305 | 270 | 220 | 9 × φ18 | 37 |
| 250 × 250 | 335 × 335 | 370 × 370 | 250 | 12 × φ18 | 48 | 250 | 370 | 335 | 250 | 12 × φ18 | 44 |
| 300 × 300 | 385 × 385 | 425 × 425 | 300 | 12 × φ18 | 54 | 300 | 425 | 385 | 300 | 12 × φ18 | 55 |
| 350 × 350 | 435 × 435 | 477 × 477 | 350 | 12 × φ18 | 67 | 350 | 477 | 435 | 350 | 12 × φ18 | 65 |
| 400 × 400 | 490 × 490 | 536 × 536 | 400 | 12 × φ18 | 85 | 400 | 536 | 490 | 400 | 12 × φ18 | 82 |
| 450 × 450 | 540 × 540 | 588 × 588 | 450 | 16 × φ18 | 99 | 450 | 588 | 540 | 450 | 16 × φ18 | 94 |
| 500 × 500 | 600 × 600 | 649 × 649 | 500 | 16 × φ18 | 112 | 500 | 649 | 600 | 500 | 16 × φ18 | 108 |
| 600 × 600 | 700 × 700 | 750 × 750 | 550 | 16 × φ18 | 152 | 600 | 750 | 700 | 550 | 16 × φ18 | 142 |
| 700 × 700 | 800 × 800 | 850 × 850 | 550 | 16 × φ22 | 204 | 700 | 850 | 800 | 550 | 16 × φ22 | 180 |
| 800 × 800 | 900 × 900 | 950 × 950 | 600 | 20 × φ22 | 228 | 800 | 950 | 900 | 600 | 20 × φ22 | 202 |
