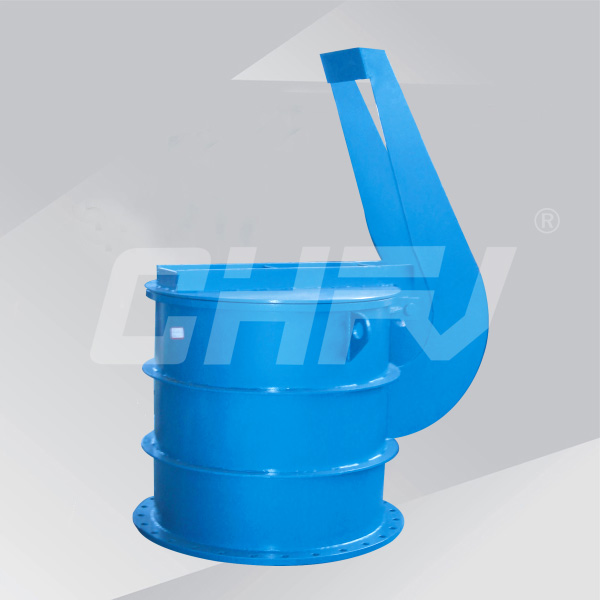

Pressure relief valve



Location:Products >> Metallurgical valve >> Pressure relief valve
Product Type: XYF
Nominal diameter: 300 ~ 1600
Nominal pressure: ≤ 0.1 ~ 0.25MPa
Applicable temperature: ≤ 200 ℃
Suitable medium: compressed explosive gas
Product details

Structural features and uses

       Pressure relief valve is mainly used for the end of the pipeline to control the pipeline pressure, the size of the control pressure can be adjusted by the weight of the top of the lid, when the system pressure exceeds the fixed pressure, the pressure relief valve cover will be opened and pressure relief, suitable for metallurgy , Cement, petrochemical and other industrial sectors.


The main shape and connection dimensions

DN

D

D1

H

L

b

&

N- & d

800

958

885

1719

1106

12

8

24-24

1000

1175

1120

2260

1350

20

10

28-30

1300

1415

1375

2850

1550

20

10

32-24
