Nominal diameter: DN300 ~ 1600mm
Nominal pressure: ≤ 0.1Mpa
Temperature: ≤300 ℃
Main material: carbon steel, aluminum
Flange Standard: GB / T9115-98
Connection dimensions: GB2555-81PN2 .5
Detection method: GB / T13927-92
First, the structural characteristics
Explosion

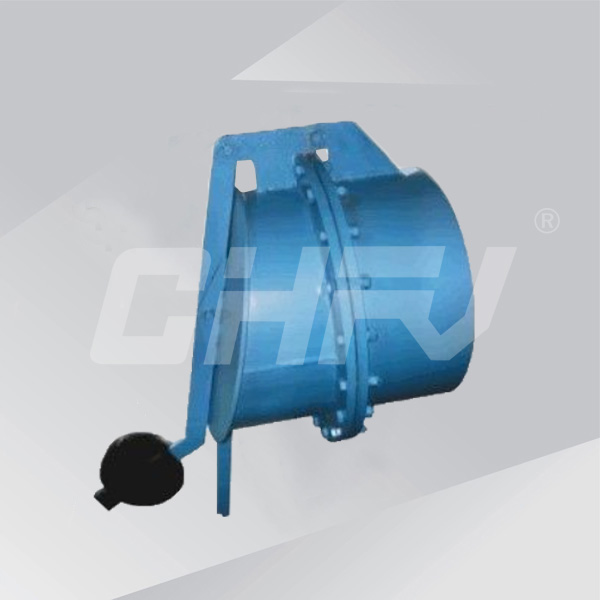

vent valve by the body, burst membrane, support, valve cover, hammer
and other components. Burst membrane installed in the middle of the
holder, with the valve body bolted. When the system overpressure,
rupture membrane rupture. Instant relief, the valve cover pops up under
the action of gravity. The valve in the replacement of burst membrane
need to lift the valve body and the holder. Bursting membrane by the
user based on their own characteristics of the process.
Second, the main technical parameters
|
Nominal diameter |
DN (mm) |
300 ~ 1600 |
|
For blasting pressure calculation (must) |
PN (MPa) |
0.1 |
|
Strength test pressure |
1.5 |
|
|
proper temperature |
≤300 ℃ |
|
|
Suitable media |
Compress explosive gas |
|
Third, the main shape and size of the connection table
| DN | D | n-φd | D1 | b | L | L1 | H | Weight / kg |
| 300 | 440 | 12-φ22 | 395 | 16 | 880 | 250 | 250 | 52 |
| 350 | 490 | 12-φ22 | 445 | 16 | 907 | 250 | 275 | 69 |
| 400 | 540 | 16-φ22 | 495 | 16 | 1010 | 250 | 300 | 77 |
| 450 | 595 | 16-φ22 | 550 | 16 | 1060 | 252 | 325 | 83 |
| 500 | 645 | 20-φ22 | 600 | 20 | 1180 | 300 | 370 | 112 |
| 600 | 755 | 20-φ26 | 705 | 20 | 1280 | 300 | 420 | 152 |
| 700 | 860 | 24-φ26 | 810 | 20 | 1390 | 300 | 470 | 193 |
| 800 | 975 | 24-φ30 | 920 | 20 | 1480 | 300 | 520 | 165 |
| 900 | 1075 | 24-φ30 | 1020 | 20 | 1590 | 350 | 600 | 335 |
| 1000 | 1175 | 28-φ30 | 1120 | 20 | 1680 | 350 | 650 | 375 |
