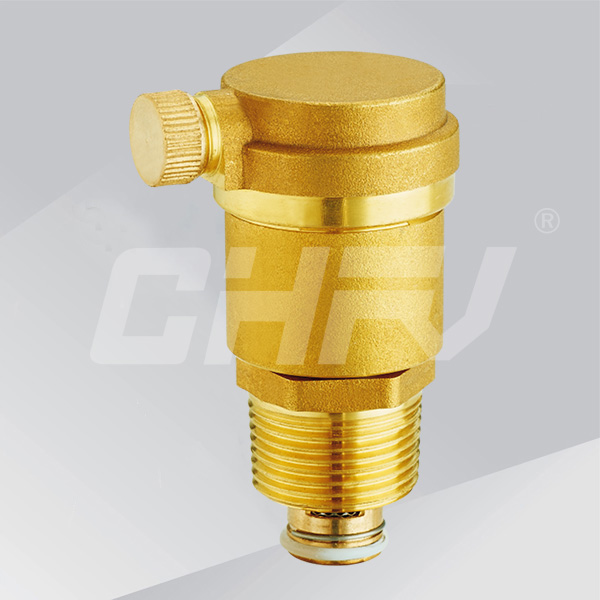

Location：Products >> Copper valve >> Brass exhaust valve
Model: P15W-16
Nominal diameter: DN15 ~ 25mm
Nominal pressure: 1.6MPa
Medium: Water, Gas
Working temperature: -10 ℃ ≤t≤100 ℃
Pipe Thread standards: ISO228 standard
Nominal diameter: DN15 ~ 25mm
Nominal pressure: 1.6MPa
Medium: Water, Gas
Working temperature: -10 ℃ ≤t≤100 ℃
Pipe Thread standards: ISO228 standard
Product details
Standard sizes
| DN (mm) | NPS (in) | L | D | S |
| 15 | ZG1 / 2 | 76 | 31.5 | 22 |
| 20 | ZG3 / 4 | 78 | 44 | 27 |
| 25 | ZG1 | 79 | 44 | 33.5 |
| 20 (A2) | ZG3 / 4 | 67.5 | 38 | 27 |
