Location：Products >> Copper valve >> Pressure reducing valve

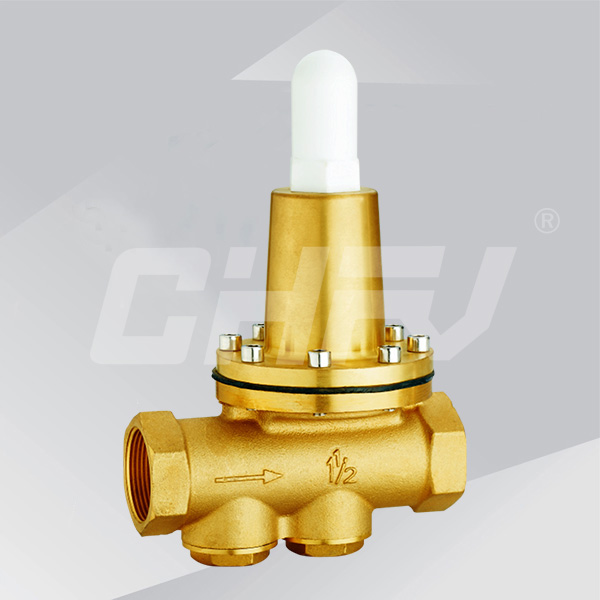

Model: 200P-16
Nominal diameter: DN15 ~ 50mm
Nominal pressure: 1.6MPa
Medium: water, gas
Working temperature: t≤80 ℃
Maximum inlet pressure: 1.6MPa
Outlet pressure adjustable range: 0.15MPa-0.50MPa (factory When the pressure is set to 0.3MPa)
Pipe thread standard: in line with ISO228 standards
Nominal diameter: DN15 ~ 50mm
Nominal pressure: 1.6MPa
Medium: water, gas
Working temperature: t≤80 ℃
Maximum inlet pressure: 1.6MPa
Outlet pressure adjustable range: 0.15MPa-0.50MPa (factory When the pressure is set to 0.3MPa)
Pipe thread standard: in line with ISO228 standards
Product details
Standard sizes
| DN (mm) | NPS (in) | L | H | S |
| 15 | 1/2 | 101 | 117 | 28 |
| 20 | 3/4 | 116 | 117 | 36 |
| 25 | 1 | 117 | 205 | 42 |
| 32 | 1 1/4 | 163 | 205 | 50 |
| 40 | 1 1/2 | 167 | 230 | 55 |
| 50 | 2 | 185 | 254 | 68 |
