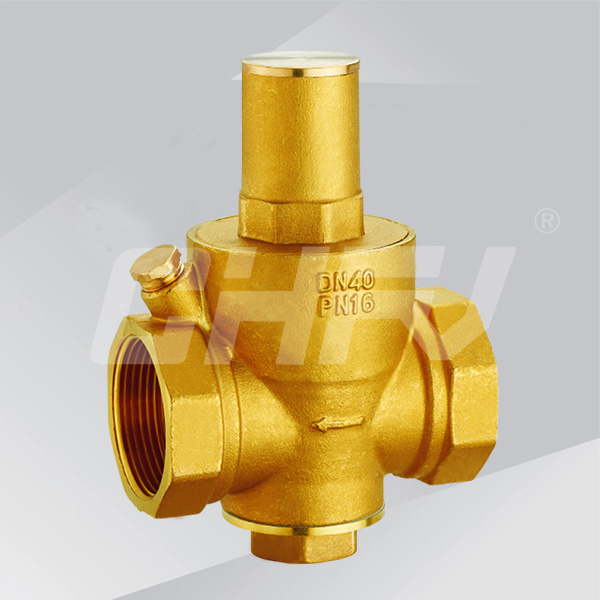

Location：Products >> Copper valve >> Brass piston pressure reducing valve
Model: Y13X-16
Nominal diameter: DN15 ~ 50mm
Nominal pressure: 1.6MPa
Medium: water
Operating temperature: 0 ℃ ≤t≤80 ℃
Outlet pressure: 0.1 ~ 0.55MPa
Pipe Thread standards: ISO228 standard
Nominal diameter: DN15 ~ 50mm
Nominal pressure: 1.6MPa
Medium: water
Operating temperature: 0 ℃ ≤t≤80 ℃
Outlet pressure: 0.1 ~ 0.55MPa
Pipe Thread standards: ISO228 standard
Product details
Standard sizes
| DN (mm) | NPS (in) | A | B | H1 | H2 | G |
| 15 | 1/2 | 78 | 11 | 29.5 | 64 | 1/2 |
| 20 | 3/4 | 78.5 | 11 | 30 | 63.5 | 3/4 |
| 25 | 1 | 85 | 15 | 35.5 | 77 | 1 |
| 32 | 1 1/4 | 85 | 18 | 37 | 79 | 1 1/4 |
| 40 | 1 1/2 | 103 | 22.5 | 47.5 | 105 | 1 1/2 |
| 50 | 2 | 120 | 28.5 | 54.5 | 126.5 | 2 |
