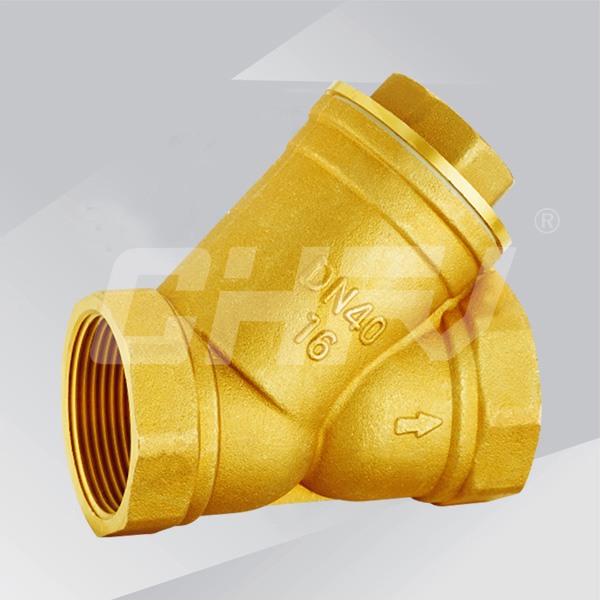

Location：Products >> Copper valve >> Threaded filter
Model: GL11W-16
Nominal diameter: DN15 ~ 65mm
Nominal pressure: 1.6MPa
Medium: water, non-corrosive liquids
Operating temperature: 0 ℃ ≤t≤100 ℃
Pipe Thread standards: ISO228 standard
Nominal diameter: DN15 ~ 65mm
Nominal pressure: 1.6MPa
Medium: water, non-corrosive liquids
Operating temperature: 0 ℃ ≤t≤100 ℃
Pipe Thread standards: ISO228 standard
Product details
Standard sizes
| DN (mm) | NPS (in) | A | B | C |
| 15 | 1/2 | 46.75 | 55 | 1/2 |
| 20 | 3/4 | 54.25 | 65 | 3/4 |
| 25 | 1 | 66.25 | 77.5 | 1 |
| 32 | 1 1/4 | 76.5 | 90 | 1 1/4 |
| 40 | 1 1/2 | 85.5 | 105 | 1 1/2 |
| 50 | 2 | 105.5 | 125 | 2 |
| 65 | 2 1/2 | 149.4 | 172 | 2 1/2 |
