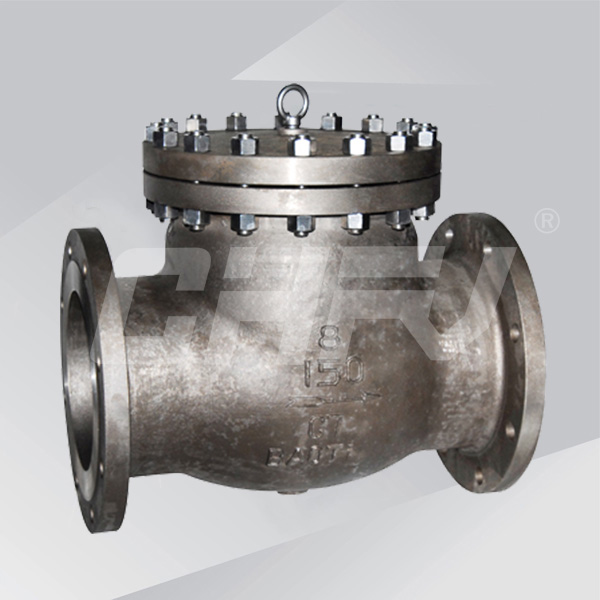

Titanium check valve



Location:Products >> Check valve >> Titanium check valve
Product Type: H41W, H44W
Nominal diameter: NPS1 / 2 "~ 48", DN15 ~ 1200mm
Nominal pressure: CIass150Lb ~ 2500Lb, PN1.0MPa ~ 42.0MPa, JIS10K ~ 40K
Connection: Flange, threaded, butt welding, socket welding
Design criteria: GB / T12236, API6D
Length of the structure: GB / T12221, ASME B16.10
Connection flange: HG, GB, JB, API , ANSI, ISO, BS, DIN, NF, JIS
Test standards: JB / T9092, GB / T13927, API598
Product details

Titanium check valve design features:

    Lifting, swing Kai, double valve type

    Full diameter or shrinkage

    Bolted or welded bonnet

    The bonnet and body can not be flanged tightly

    Renewable seat or body seat

    Conical valve or plane valve



Titanium check valve body material:

    ZTA1, ZTA2, ZTA3, ZTA9, ZTA10, ZTC4

    TA1, TA2, TA3, TA9, TA10, TC4

    Titanium Gr2, Gr3, Gr5, Gr6, Gr7, Gr12

    Titanium GrC2, GrC3, GrC5, GrC6, Ti-Pd7B, GrC12

    Titanium GrF2, GrF3, GrF5, GrF6, GrF7, GrF12
