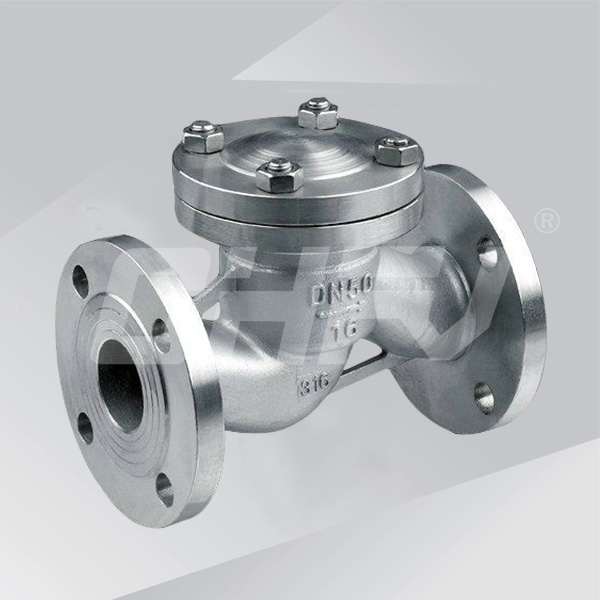

Stainless steel lifting check valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal diameter: DN50 ~ 400mm
Pressure range: PN10 ~ 160MPa
Working temperature: -196 ℃ ~ + 560 ℃
Main material: carbon steel, stainless steel, alloy
Design and manufacture: GB12236
Structural length: GB12221
Connecting flange : JB / T79-1994
Test and Inspection: JB / T9092-1999
Product Overview
Lift check valve for medium and small diameter pipeline pressure,
temperature and medium control connected to or cut off the pipeline
medium opening and closing device; rely on valve flap weight and fluid
pressure automatically stop fluid backflow .
Features
1,
when the medium flows into the valve body by the arrow of the body, the
pressure of the medium acts on the valve flap to generate an upward
thrust force, and when the medium thrust force is greater than the
gravity of the valve flap, the valve is opened. When the valve medium
pressure on the role of the valve with the force of the valve itself is
greater than the pressure before the valve pressure on the role of the
valve, the valve closed to prevent the media back.
2, lifting check valve has the advantages of simple structure,
reliable operation, easy maintenance, widely used in purification
equipment, petroleum, chemical, metallurgy, electric power, textile and
other production processes.
Performance specifications
| Body material |
Nominal pressure (MPa) |
Working temperature (℃) |
Suitable media | |
| Carbon steel | 1.6-6.4 | ≤425 | Water, oil, steam | |
| 10.0,16.0 | ≤450 | / | ||
| stainless steel | P | 1.6-16.0 | ≤200 | Nitric acids |
| R | / | / | Acetic acid | |
|
Chrome nickel-titanium heat-resistant steel |
PI | 1.6-6.4 | ≤550 | Oil, petroleum products |
| Chrome-molybdenum steel | 1.6-16.0 | ≤550 | oil | |
The main dimensions
|
Nominal pressure PN |
Nominal diameter DN |
The main connection size |
Overall dimensions |
||||||||
| L | D | D 1 | D 2 | D 6 | b | f | f 1 | Z-φd | H | ||
| 1.6MPa | 40 | 200 | 145 | 110 | 85 | - | 16 | 2 | - | 4-18 | 95 |
| 50 | 230 | 160 | 125 | 100 | - | 16 | 2 | - | 4-18 | 105 | |
| 65 | 290 | 180 | 140 | 120 | - | 18 | 2 | - | 4-18 | 120 | |
| 80 | 310 | 195 | 165 | 135 | - | 20 | 3 | - | 8-18 | 130 | |
| 100 | 350 | 215 | 180 | 155 | - | 20 | 3 | - | 8-18 | 140 | |
| 125 | 400 | 245 | 210 | 185 | - | 22 | 3 | - | 8-12 | 155 | |
| 150 | 480 | 280 | 240 | 210 | - | 24 | 3 | - | 8-23 | 180 | |
| 200 | 600 | 335 | 295 | 265 | - | 26 | 3 | - | 12-23 | 215 | |
