Thermal disc steam traps
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal diameter: DN15 ~ 65mm
Nominal: PN0.01 ~ 1.6MPa
Operating temperature: ≤350 ℃
Main material: Forged steel, stainless steel, titanium steel, chromium molybdenum steel, low temperature steel
Operation: manual
Design specification: GB / T 9093
Construction length: GB / T 12250
Threaded connection: ISO 228
Flange connection: JB / T 79, GB 9113, ANSI B16.34
Test and inspection: GB / T 13927

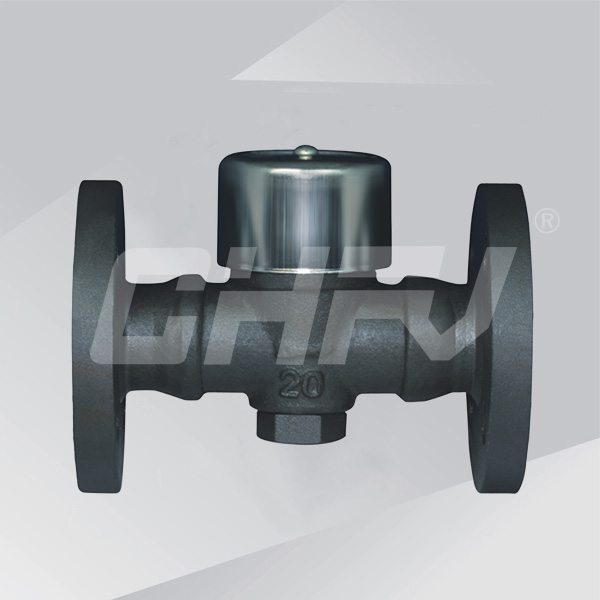

Thermodynamic disc steam trap CS49 Beijing-style main parts Material:
|
Body |
Forged steel |
|
Bonnet |
stainless steel |
|
cap |
Forged steel |
|
Valve |
stainless steel |
|
Body sealing surface |
stainless steel |
Thermodynamic disc steam trap CS49 Beijing-style displacement (Kg / h):
|
Product number |
DN |
Working pressure (Mpa) |
||||||
|
0.05 |
0.15 |
0.4 |
0.6 |
1 |
1.6 |
2.5 |
||
|
CS19H-16C |
15,20,25 |
150 |
280 |
400 |
475 |
600 |
800 |
|
|
CS49H-16C |
||||||||
|
CS69H-16C |
32,40,50 |
550 |
650 |
900 |
1200 |
1700 |
2100 |
|
|
CS19H-25 |
15,20,25 |
1717 |
1828 |
2536 |
2701 |
3202 |
3581 |
|
|
CS49H-25 |
32,40 |
56 |
119 |
321 |
470 |
534 |
||
|
CS69H-25 |
50 |
1800 |
2050 |
2600 |
3000 |
3500 |
4300 |
5000 |
|
CS19H-40 |
15,20,25 |
56 |
119 |
321 |
470 |
534 |
||
|
CS49H-40 |
||||||||
|
CS69H-40 |
32,40,50 |
1800 |
2050 |
2600 |
3000 |
3500 |
4300 |
5000 |
