Location：Products >> Drain valve >> Bimetal temperature modulation

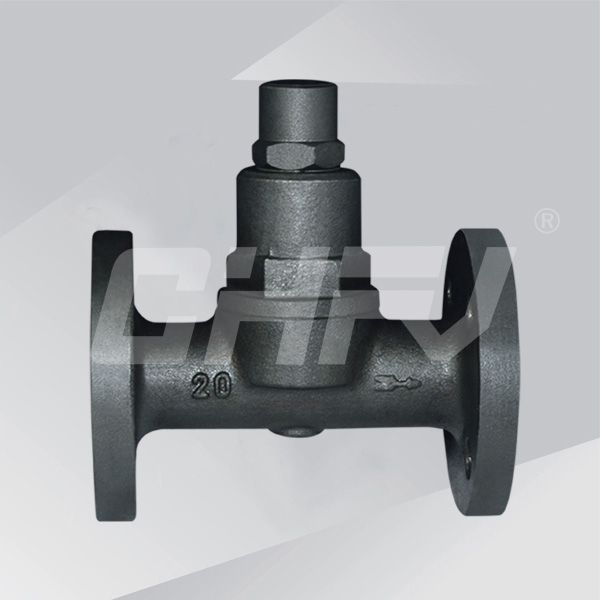

Model: TB6
Nominal diameter: DN15 ~ 50mm
Nominal: PN0.01 ~ 1.6MPa
Operating temperature: ≤350 ℃
Main material: Forged steel, stainless steel, titanium steel, chromium molybdenum steel, low temperature steel
Operation: manual
Design specifications : GB / T 9093
Construction length: GB / T 12250
Threaded connection: ISO 228
Flange connection: JB / T 79, GB 9113, ANSI B16.34
Testing and Testing: GB / T 13927
Nominal diameter: DN15 ~ 50mm
Nominal: PN0.01 ~ 1.6MPa
Operating temperature: ≤350 ℃
Main material: Forged steel, stainless steel, titanium steel, chromium molybdenum steel, low temperature steel
Operation: manual
Design specifications : GB / T 9093
Construction length: GB / T 12250
Threaded connection: ISO 228
Flange connection: JB / T 79, GB 9113, ANSI B16.34
Testing and Testing: GB / T 13927
Product details
[Basic Information]
How it works: The valve temperature changes caused by the feeling of bimetallic deformation of the steam, so as to drive the spool to move the main valve opening and closing valve seat hole, to block steam emissions.
|
Nominal pressure |
PN20 |
PN50 |
|
Anti-air resistance function |
Capsule automatic or manual |
Manual |
| PMA maximum allowable pressure |
2.0MPa@38 ℃ |
4.7MPa@93 ℃ |
| PMO maximum working pressure | 1.6MPa@149 ℃ | 3.8MPa@315 ℃ |
| TMA maximum allowable temperature | 427 ℃@0.6MPa | 427 ℃@2.9MPa |
|
TMO maximum operating temperature |
427 ℃@0.6MPa | 427 ℃@2.9MP |
[Valve Features]
Thermal components using imported materials, high sensitivity, durable. Always prepare condensate before the valve to form a water seal, no fresh steam leaks. Exhaust performance, resistance to water hammer, and can be installed at any angle.
[Adaptations]
The valve is suitable for the main steam line and superheated steam line, can automatically exclude the condensate water discharge temperature, energy saving effect is good.
[Main appearance and connection size]
| Product number | Nominal diameter (DN) | Connection method | Working pressure (MPa) |
Maximum allowable temperature (℃) |
Adjust the temperature range (℃) |
Dimensions | Reference weight (Kg) | |||
| L | H1 | H2 | W | |||||||
| TB6 | 15 ~ 20 | Thread | 0.01 ~ 1.6 | 220 | 50 ~ 180 | 90 | 108 | 25 | 63 | 1.8 |
| 25 | 95 | |||||||||
| TB6F | 15 ~ 20 | Flange | 0.01 ~ 1.6 | 220 | 50 ~ 180 | 150 | 108 | 25 | 63 | 3.2 |
| 25 | 160 | 3.9 | ||||||||
| 32 ~ 50 | 230 | 5.6 | ||||||||
| TB6W | 15 ~ 20 | Socket welding | 0.01 ~ 1.6 | 220 | 50 ~ 180 | 90 | 108 | 25 | 63 | 1.8 |
| 25 | 95 | |||||||||
| TB11 | 15 ~ 20 | Thread | 0.01 ~ 1.6 | 220 | 50 ~ 190 | 90 | 108 | 25 | 63 | 1.8 |
| 25 | 95 | |||||||||
| TB11F | 15 ~ 20 | Flange | 0.01 ~ 1.6 | 220 | 50 ~ 190 | 150 | 108 | 25 | 63 | 3.2 |
| 25 | 160 | 3.9 | ||||||||
| 32 ~ 50 | 230 | 5.6 | ||||||||
| TB11W | 15 ~ 20 | Socket welding | 0.01 ~ 1.6 | 220 | 50 ~ 190 | 90 | 108 | 25 | 63 | 1.8 |
| 25 | 95 | |||||||||
| TB3 | 15 ~ 20 | Thread | 0.01 ~ 1.6 | 350 | 50 ~ 190 | 80 | 90 | 23 | 56 | 1.5 |
| 25 | 85 | |||||||||
| TB3F | 15 ~ 20 | Flange | 0.01 ~ 1.6 | 350 | 50 ~ 190 | 150 | 90 | 23 | 56 | 3.3 |
| 25 | 160 | 4.2 | ||||||||
| TB3W | 15 ~ 20 | Socket welding | 0.01 ~ 1.6 | 350 | 50 ~ 190 | 80 | 90 | 23 | 56 | 1.5 |
| 25 | 85 | |||||||||
| TB5 | 15 ~ 20 | Thread | 0.01 ~ 2.1 | 350 | 50 ~ 200 | 80 | 90 | 23 | 56 | 1.5 |
| 25 | 85 | |||||||||
| TB5F | 15 ~ 20 | Flange | 0.01 ~ 2.1 | 350 | 50 ~ 200 | 150 | 90 | 23 | 56 | 3.3 |
| 25 | 160 | 4.2 | ||||||||
| TB5W | 15 ~ 20 | Socket welding | 0.01 ~ 2.1 | 350 | 50 ~ 200 | 80 | 90 | 23 | 56 | 1.5 |
