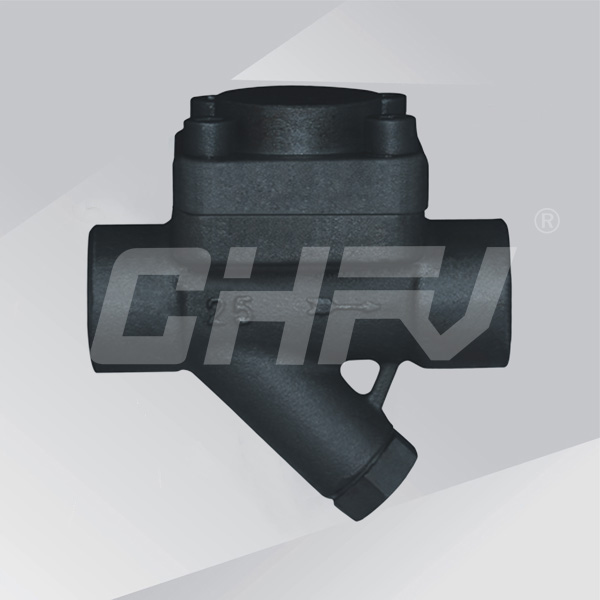

Thermostatic diaphragm cassette CS16 overview
Thermostatic membrane cassette steam traps (steam pressure balance) is the most commonly used advanced energy-saving traps. The response of the membrane cassette steam trap is very sensitive. When working, there is high temperature condensate in front of the valve, no steam leakage and significant energy saving effect.
Its advantages are: automatic discharge of air, small size, not afraid of freezing, can be installed anywhere; easy maintenance, repair and replacement parts can be checked in the pipeline; maximum back pressure rate ≤ 80%, membrane box is strong, long service life.
The main performance and components
|
Part name |
material |
|
Body valve cover |
WCB |
|
Membrane box |
1Cr18Ni9Ti |
|
Diaphragm |
Hastelloy |
|
Seat |
3Cr13 |
|
Filter |
1Cr18Ni9Ti |
Dimensions table
|
Product number |
Path (mm) |
Connection method |
Body material |
Working pressure |
The maximum allowable temperature ℃ |
Overall dimensions (mm) |
|||
|
L |
H1 |
H2 |
W |
||||||
|
CS16H-16C |
15-20 |
internal thread |
WCB |
0.05 ~ 1.6 |
250 |
100 |
58 |
55 |
70 |
|
25 |
0.05 ~ 1.6 |
250 |
120 |
58 |
55 |
70 |
|||
|
32-40 |
0.05 ~ 1.6 |
250 |
150 |
68 |
68 |
90 |
|||
|
50 |
250 |
160 |
68 |
68 |
90 |
||||
|
CS16Y-25C |
15-20 |
Flange |
WCB |
0.05 ~ 2.5 |
250 |
150 |
58 |
55 |
70 |
|
25 |
0.05 ~ 2.5 |
250 |
160 |
58 |
55 |
70 |
|||
|
30-50 |
0.05 ~ 2.5 |
250 |
230 |
85 |
60 |
120 |
|||
