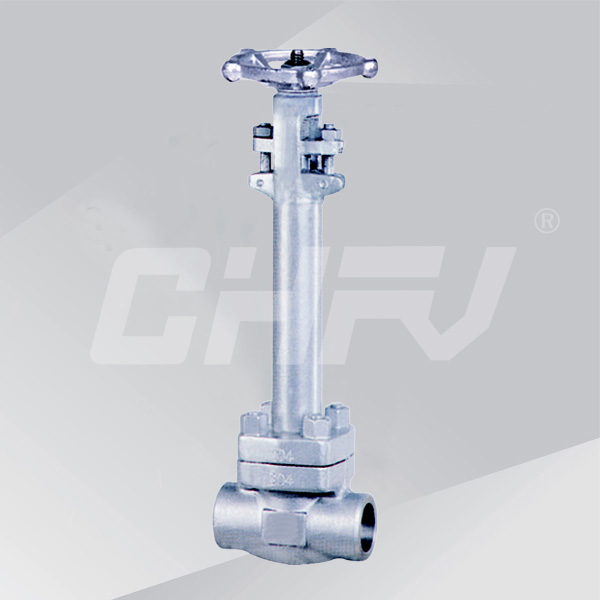

Stainless steel cryogenic valve
- Products
- Ball valve
- Butterfly valve
- Gate valve
- Globe Valve
- Check valve
- Anticorrosive valve
- Forged steel valve
- Regulating valve
- Hydraulic control valve
- Power station valve
- Drain valve
- Bellows valve
- Metallurgical valve
- Flame arrester and breathing valve
- Solenoid valve
- Needle valve
- Copper valve
- Ceramic valve
- Oil field valve
- Safety valve
- Actuator series
Nominal diameter: NPS3 / 8 "~ 2"
Nominal pressure: Class150 ~ 2500Lb
Suitable medium: water, steam, oil and the like
Temperature: -29 ℃ ~ 550 ℃
Main material: A105, A182 F22, A182F 304L , A182 F316L
Manufacturing Standards: According to API 602, BS5352, ANSI B16.34
Testing and Acceptance: According to API 598, marking according to MSS SP-25
【Product performance parameters】
|
DZ11H , DZ11Y type 150 (Lb) ~ 800 (Lb) forging steel cryogenic gate valve main performance parameters |
||||
|
model |
Pressure level |
Working pressure |
Applicable temperature |
Suitable media |
|
DZ11H-150 (Lb) |
150 |
2.0 |
≤425 |
Water, steam, oil |
|
DZ11H-300 (Lb) |
300 |
5.0 |
||
|
DZ11H-600 (Lb) |
600 |
10.0 |
||
|
DZ11H-800 (Lb) |
800 |
14.0 |
||
|
DZ11Y-150 (Lb) |
150 |
2.0 |
≤425 |
Water, steam, oil |
|
DZ11Y-300 (Lb) |
300 |
5.0 |
||
|
DZ11Y-600 (Lb) |
600 |
10.0 |
||
|
DZ11Y-800 (Lb) |
800 |
14.0 |
||
【Product Parts Materials】
|
DZ11H , DZ11Y type 150 (Lb) ~ 800 (Lb) Forged steel cryogenic gate valve parts and components |
||||
|
model |
material |
|||
|
Body, bonnet, gate |
Valve stem |
Sealing surface |
filler |
|
|
DZ11H-150 (Lb) |
Carbon steel |
Chrome stainless steel |
Chrome stainless steel or |
Flexible asbestos |
|
DZ11H-300 (Lb) |
||||
|
DZ11H-600 (Lb) |
||||
|
DZ11H-800 (Lb) |
||||
|
DZ11Y-150 (Lb) |
Carbon steel |
Chrome stainless steel |
Chrome stainless steel or |
Flexible asbestos |
|
DZ11Y-300 (Lb) |
||||
|
DZ11Y-600 (Lb) |
||||
|
DZ11Y-800 (Lb) |
||||
[ Product appearance and structure size]
|
DZ11H , DZ11Y type 150 (Lb) ~ 800 (Lb) Forged steel cryogenic gate valve main shape and structure size(mm) |
|||||||
|
DN |
S / mm |
T / in |
W / mm |
H (open) / mm |
Weight / kg |
||
|
in |
mm |
JNSI |
JIS |
||||
|
½ |
15 |
21.8 |
22.2 |
½ |
125 |
333 |
7.1 |
|
¾ |
20 |
27.1 |
27.7 |
¾ |
125 |
360 |
9.4 |
|
1 |
25 |
33.8 |
34.5 |
1 |
160 |
407 |
13.5 |
|
1¼ |
32 |
42.6 |
42.2 |
1¼ |
160 |
475 |
15.0 |
|
1½ |
40 |
48.7 |
49.1 |
1½ |
180 |
475 |
17.8 |
|
2 |
50 |
61.1 |
61.1 |
2 |
200 |
551 |
28.0 |
